Azek Trim
As a long-standing dealer of Azek PVC products, we are honored to offer this high quality brand.
We are a full line stocking dealer of Azek trimboards, beadboard, column wraps, and sheets. The items listed below is our current stock list. For Azek items not stocked, we are able to special order them with availability in 2-3 days.

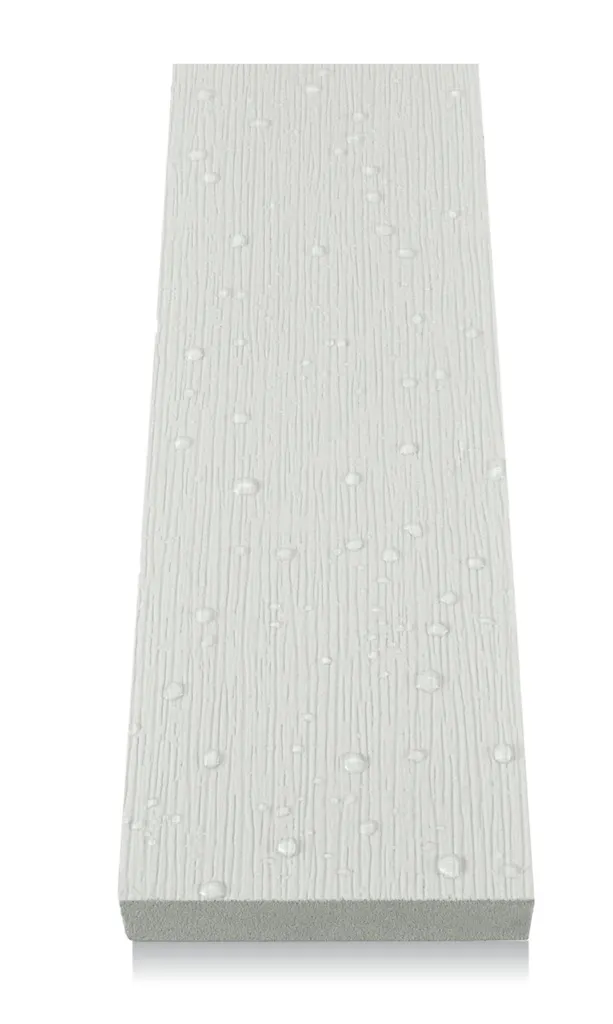

Trimboards
*All trimboards come in 18′ lengths and are smooth.
| Nominal | Actual |
|---|---|
| 1 x 4 | ¾” x 3½” |
| 1 x 6 | ¾” x 5½” |
| 1 x 8 | ¾” x 7¼” |
| 1 x 10 | ¾” x 9¼” |
| 1 x 12 | ¾” x 11¼” |
| 1 x 16 | ¾” x 15¼” |
| Nominal | Actual |
|---|---|
| 5/4 x 4 | 1” x 3½” |
| 5/4 x 6 | 1” x 5½” |
| 5/4 x 8 | 1” x 7¼” |
| 5/4 x 10 | 1″ x 9¼” |
| 5/4 x 12 | 1” x 11¼” |
Sheets
| Thickness | Size |
|---|---|
| 3/8″ | 4′ x 8′ |
| 1/2″ | 4′ x 8′ |
| 1/2″ Beaded | 4′ x 8′, 2-3/8″ O.C. bead |
| 3/4″ | 4′ x 8′ |
| 1″ | 4′ x 8′ |

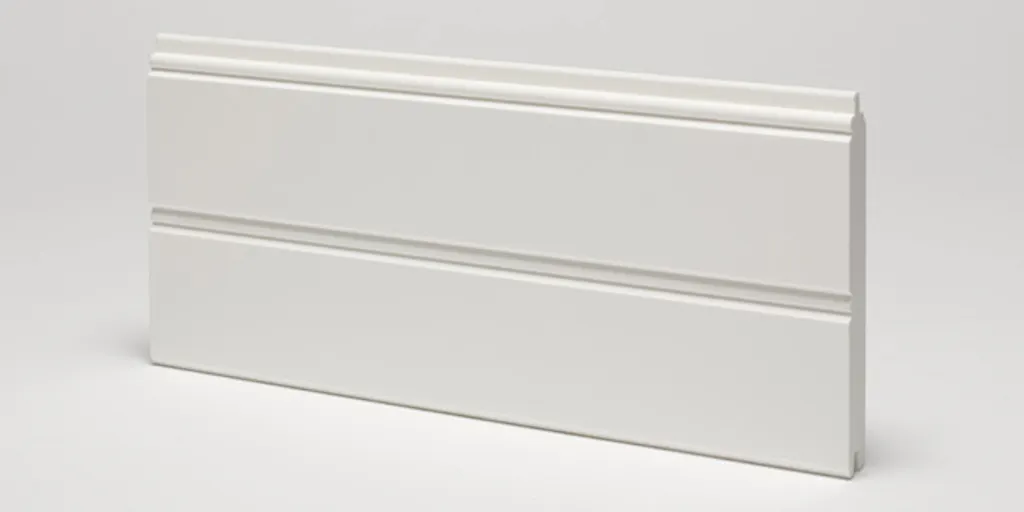

Beadboard
| Nominal | Actual | Type |
|---|---|---|
| 1 x 6 | ¾” x 5½” | T&G, Bead Board Edge & Center Bead 1 Side Smooth |
Column Wraps
| Nominal | Inside Dimension | Outside Dimension | Height |
|---|---|---|---|
| 4 x 4 | 3 ¾″ x 3 ¾″ | 4 ¾″ x 4 ¾″ | 8’6″ |
| 4 x 4 | 3 ¾″ x 3 ¾″ | 4 ¾″ x 4 ¾″ | 10′ |
| 6 x 6 | 5 ¾″ x 5 ¾″ | 6 ¾″ x 6 ¾″ | 8’6″ |
| 6 x 6 | 5 ¾″ x 5 ¾″ | 6 ¾″ x 6 ¾″ | 10′ |
Below is mobile version ↘
4 x 4 Column Wrap
| Inside & Outside Dimension | Height |
|---|---|
| Inside: 3 ¾″ x 3 ¾″ Outside: 4 ¾″ x 4 ¾″ | 8’6″ |
| Inside: 3 ¾″ x 3 ¾″ Outside: 4 ¾″ x 4 ¾″ | 10′ |
6 x 6 Column Wrap
| Inside & Outside Dimension | Height |
|---|---|
| Inside: 5 ¾″ x 5 ¾″ Outside: 6 ¾″ x 6 ¾″ | 8’6″ |
| Inside: 5 ¾″ x 5 ¾″ Outside: 6 ¾″ x 6 ¾″ | 10′ |
